Model 4010 Crease and Lump™ Detection Technology











Splice Detector Sensor Technologies by RKB on Facebook   Splice Detector Sensor Technologies by RKB on Google Plus   Splice Detector Sensor Technologies by RKB on LinkedIn   Splice Detector Sensor Technologies by RKB on YouTube



Our Model 4010 Crease and Lump™ Detection Technology
is designed to detect creases, lumps, splices, and
other types of elevation defects.



Model 4010 Crease and Lump™ Detection Technology

TECHNICAL SPECIFICATIONS

Defects Types Detected:

Creases
Lumps
Splices
Wrinkles
Other Elevation Defects

Minimum Detectable Defect:

0.001"

(0.025 mm)

Sensitivity:

Continuously Adjustable

Sensitivity Range:

100 to 1

Web Material Texture:

Smooth

Inspection Increments:

6"

(15.24 cm) per Head Unit
Each Containing 2 Roller Type Light
Gates 3"

(7.62 mm) Long

Maximum Inspection Width:

Unlimited Through
Side By Side

Installation of
6" Head Units

Contact Head Pressure:

2 ounces/linear inch
(2 grams/linear

millimeter)

Maximum Web Speed:

1,000'/min

(304.8 m/min.)

Outputs:

Standard:

    Optional:

Audio/Visual Alarm
9-12 VDC Pulse
Reject Control Output
Edge Marker Output
Counters
Microcontroller Based Display

Mounting:

Per Existing Equipment Requirements

Illumination:

Fluorescent Light Sources

Ambient Temperature:

40 to 160° F

4 to 70° C)

Power:

120/220/240 VAC
50/60 Hz
Single Phase

Specifications are subject to change without notice.

Model 4010 Crease and Lump™ Detection TechnologyDetect Elevation Defects:
Our Model 4010 Crease and Lump™ Detection Technology is designed to detect creases, lumps, splices, and other types of elevation defects in moving webs of material. Because of their mechanical construction and operating principles, these detectors can be used in a wide variety of web inspection applications.





Monitor All Materials:
Choose our Model 4010 Crease and Lump™ Detection Technology for on-line monitoring of metallic and nonmetallic papers, plastics, foils, films, textiles, and other types of web manufactured materials. As elevation defects are encountered, an inspection roller in the device momentarily looses contact with the web material allowing light to reach a photocell for defect detection and subsequent control of processing equipment.

Automatically Adjust To Changes:

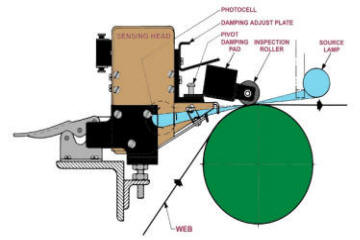

Sensing heads in CLDs use patent pending and proprietary low pressure roll technologies to prevent damage to the web material during inspection. Each sensing head is self-compensating and self-aligning allowing the detector to automatically adjust to changes in the type or caliper of web material.
