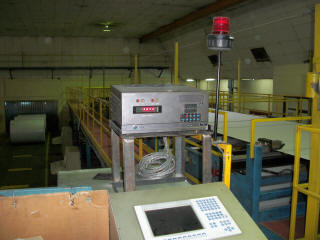

Model 1122 Abolisher® Reject Gate Control™ Technology

TECHNICAL SPECIFICATIONS

Reject Accuracy:

1/64" Max

(0.4 mm Max.)

Margin Inhibit Range:

0.5 to 1.5%

of Sheet Length

Maximum Web Speed:

Depending on Application

Input:

9-12 VDC Pulse

Outputs:

2.0 Amp at 20 VDC
5.0 Amp DPDT Relay Contacts
10 Amp DPDT Relay Contacts
Optional

Mounting:

Electronics:
    Pulse Generator:

Rack Mounted
Machine Mounted

Near Knife
Timing Belt Driven

Ambient Temperature:

40 to 160° F

(4 to 70° C)

Power:

110/220/240 VAC
50/60 Hz
Single Phase
50 Watts

Specifications are subject to change without notice.

Model 1122 Abolisher® Reject Gate Control™ TechnologyAutomate Inspection Operations:
The Model 1122 Abolisher® Reject Gate Control™ Technology interfaces with a any machine vision web inspection, hole detection, defect fault detection, splice detection, watermark registration technology. Our Reject Control technology will provide web based manufacturers the ability to automate their quality and sorting initiatives. The Model 1122 Abolisher® Reject Gate Control™ Technology is well suited to new and older sheeting systems and is designed for quick and easy installation. Choose the Model 1122 Abolisher® Reject Gate Control™ Technology for faster, more reliable, control of delivered product quality.

Ensure Accurate Results:
A "Pulsation Initiator", combined with the innovative electronic processing technologies, makes it feasible for full sheet and fractional sheet determination between the machine vision inspection solution and the sheeter reject gate systems. Since the "Pulsation Initiator" is machine drive shaft driven, system accuracy is not speed dependent.

Process Multiple Products:
The Model 1122 Abolisher® Reject Gate Control™ Technology is designed to ensure that only material with defects are rejected. It can be used to process multiple products of differing lengths through front panel switching technology. A margin inhibit system is used to disengage the reject mechanism when a defect falls within 1/4" (6.35 mm) of the cut line (i.e., within a margin which will be trimmed later). If a large defect occurs that spans multiple sheets, the unit ensures that all defective sheets are rejected.


Model 1122 Abolisher® Reject Gate Control™ Technology

Model 1122 Abolisher® Reject Gate Control™ Technology


Select An Integrated System:
The Model 1122 Abolisher® Reject Gate Control™ Technology can be combined with any machine vision web inspection technology, splice detection technology or watermark registration technology. Our Model 1122 Abolisher® Reject Gate Controls will form an integrated, single source, solution for your cutting, sorting and inspection initiatives. The Model 1122 Abolisher® Reject Gate Control™ Technology can quickly and easily be applied to any current or past machine vision technology provided by any company too meet today's diverse quality control needs. We provide expert design, system integration, installation and support to ensure success with your project.



Model 1122 Abolisher® Reject Gate Control™ Technology

Model 1122 Abolisher® Reject Gate Control™ Technology

Model 1122 Abolisher® Reject Gate Control™ Technology

Model 1122 Abolisher® Reject Gate Control™ Technology

Model 1122 Abolisher® Reject Gate Control™ Technology

3600 Sheeter Inspection

 2060 Flaw Detector

 2084 Hole Detector

3020 Streak Detector

3040 Web Inspection

Call Today:
Call today to discuss your web inspection application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
