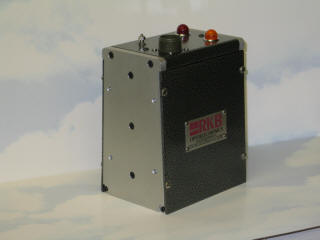

Model 1478 Defender® Missing Ply™ Detector Technology

TECHNICAL SPECIFICATIONS

Defects Types Detected:

Missing Plies

Material Compatibility:

Papers

Other Non-metallic Materials

Ancillary equipment

Model 1042 AVT

Model 1122

Model 1280

Web Thickness:

0.20" Max

(5.08 mm Max.)

Gap Width:

0.25"

(6.35 mm)

Minimum Web Speed:

30 fpm

(9 m/min)

Maximum Web Speed:

No Limit

Relay Alarm Outputs:

Dry Contact Closures:

Amp Capacity at 110 VAC:

Amp Capacity at 220 VAC:

Alarm On Period:





2 (Non-inductive)

0.1 Amp

0.05 Amp

1 Second

Electronic Alarm Output:

Pulse Outputs:

Voltage:

Direction:

Duration:





1

15 V (± 3 V)

Positive Going

10 ms

Ambient Temperature:

40 to 160° F

(4 to 70° C)

Dimensions:

6.0" X 7.5" X 4.37"

(15.24 cm X 19.05 cm

 x 11.1 cm)

Power:

110/220/240 VAC

50/60 Hz

Single Phase

Weight:

10 lbs

4.53 kilogram

Specifications are subject to change without notice.

Model 1478 Defender® Missing Ply™ Detector TechnologyReliability Equals Profit:
The reliability of our Model 1478 Defender® Missing Ply™ Detector Technology is unparalleled in the industry. Regardless of the application, machine or surroundings, our sensors will not quit. Our technology does not require operational intervention, adjustments, re-calibration and monitoring, unlike ultrasonic sensors and photo electrics. Our Model 1478 Defender® Missing Ply™ Detector is designed as the “Quick Fix” and is a committed investment that ensures cost effective quality assurance and control that translates into a much higher ROI and increased profitability.

Ensure Product Superiority:
For most multi web (ply) processes, conventional photocells, ultrasonic, resistive and inductive sensors face many difficulties in reliable detection. Issues such as basis weight variations all too often create either false signals, or in most cases, no signal at all.


Missing Ply, Splice and Web Break Detection

Coaters

Missing Ply, Splice and Web Break Detection

Extrusion

Missing Ply, Splice and Web Break Detection

Laminators

Missing Ply, Splice and Web Break Detection

Rotogravure

Missing Ply, Splice and Web Break Detection

Slitters

Missing Ply, Splice and Web Break Detection

UV Flexo Press

Missing Ply, Splice and Web Break Detection

Embossers



Model 1478 Defender® Missing Ply™ Detector TechnologyMany conventional approaches use two, three and even more sensors in an attempt to achieve what “ONE” Model 1478 Defender® Missing Ply™ Detector Technology provides. While false signals are bothersome, the absences of a signal is damaging and can cost tens of thousands of dollars in erratic machine performance, product quality, customer complaints, and damage to sensitive components.

Simple, Quick and Effective:
Easy to set up and operate, and harmonious with logic systems and programmable controllers, the Model 1478 Defender® Missing Ply™ Detector Technology can be easily integrated on any application that calls for the detection of missing plies, as well as splices, metal chips and web breaks. Modular in design, our missing ply detector requires no operational intervention complicated setup procedures or constant tweaking.


Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology


Unaffected by Conditions:
Unaffected by web width, grade chances, number of webs or plies, material color, machine speed, and printed surfaces, our missing ply detection technology is truly plug and play. Maintenance free; you will save time and money since our missing ply detection technology is self-calibrating to any process for which the sensor is applied too. Available as an all in one unit or custom oriented to the application, the standard for missing ply detection is clear; the standard is the SDT Model 1478 Defender® Missing Ply™ Detector Technology. Both a signal contact closure and a signal digital pulse output are included with each unit to facilitate interfacing to control production equipment such as sheeter gates, coating head applicators, presses, laminators, treaters, audio/visual alarms as well as automatic marking systems.


Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Australian Installation

Australian Installation

Australian Installation

Australian Installation

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Model 1478 Defender® Missing Ply™ Detector Technology

Canadian Installation

Canadian Installation

Canadian Installation

Canadian Installation


Innovative Solution for Pioneering Industries:
This innovative sensing solution is applicable to industries that convert plies of nonconductive materials such as multi-ply films, multi-ply tissue, multi-ply fibrous materials, multi-ply laminates, PTFE-based ply material, multi-ply flexible material, multi-ply pressure-sensitive material, multi-ply paper sack, and multi-ply medical materials as well as many other consumer and industrial products. The SDT Model 1478 Defender® Missing Ply™ Detector Technology uses state-of-the-art capacitive, non-contact sensing technologies. Immune to grade changes, material color, type of material and machine speed, the SDT Model 1478 Defender® Missing Ply™ Detector Technology will never miss an absent ply, splice, or web break.


Benefits Gained

Missing Ply, Splice and Web Break Detection

Eliminates damage to embossing and perforating rolls

Missing Ply, Splice and Web Break Detection

Eliminates roll wrap ups

Missing Ply, Splice and Web Break Detection

Monitors the entire multi-web (ply) makeup at one convenient point as they leave the embossing station

Missing Ply, Splice and Web Break Detection

One sensor, one job, multi webs – no need for complicated sensor arrangements, installations and integration.



Call Today:
Call today to discuss your web inspection application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
