Model 1280 Guardian® Multicolor Edge Marking™ Technology









Splice Detector Sensor Technologies by RKB on Facebook   Splice Detector Sensor Technologies by RKB on Google Plus   Splice Detector Sensor Technologies by RKB on LinkedIn   Splice Detector Sensor Technologies by RKB on YouTube



Combined with appropriate machine vision web inspection the RKB
Model 1280® Guardian™ Multicolor Edge Marking Technology
makes it possible to positively identify defect types
and/or locations.



Model 1280 Guardian® Multicolor Edge Marking™ Technology

 TECHNICAL SPECIFICATIONS

Marking Width:

up to 2"

(50.8 mm)

Web Tracking:

up to 11"

(279.4 mm)
Infrared Light Emitting

Diode Based

Ink Types:

Available from R.K.B:
Available from Others:

Any type of liquid

can be used

(except for acid

and corrosion types)

R.K.B Water Based Ink Colors:

Red
Blue
Green
Black
Orange

Reservoir Size:

1 Quart

Ambient Temperature:

40° to 160° F

(4° to 70° C)

Clean and Dry Air:

80 to 90 PSI

Power:

110/220/240 VAC
50/60 Hz
Single Phase

Specifications are subject to change without notice.

Note: R.K.B water based inks are supplied in cases of 16 one liter bottles and are sold by the case only. Material Safety Data Sheets are supplied with all R.K.B inks. Additional ink colors are available and must be specified prior to ordering (new marking units only)

Model 1280 Guardian® Multicolor Edge Marking™ TechnologyPositively Mark Defects:
When combined with appropriate machine vision web inspection technology, the Model 1280 Guardian® Multicolor Edge Marking™ Technology makes it possible to positively identify defect types and/or locations in a variety of web based materials. Up to five standard colors of water based, re-pulpable inks can be applied by means of atomizing systems to form a controlled mark along the web edge. Additional colors can be applied depending on your overall application. Additionally, any type of ink can be utilized in our spray marking technology provided it is liquid form.

Model 1280 Guardian® Multicolor Edge Marking™ TechnologyAchieve Automatic Control:
Marks produced by the Model 1280 Guardian® Multicolor Edge Marking™ Technology are detectable with a variety of on-line sensors for automated control of subsequent processing machinery such as winders, slitters, sheeters and coaters. These marks are also visually pronounced as concentric circles on the outside edge of the material roll for corrective patching or splicing of defective areas, sorting or grading decisions. Our Model 1280 Guardian® Multicolor Edge Marking™ Technology can be integrated with our "Auto Break" technologies to ensure complete automatic control capabilities.

Track Edge of Web Motion:

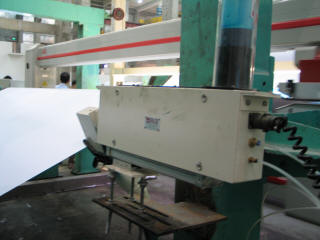

Solid state laser sensing technologies are used for corrective web edge tracking up to 12" (30.5cm) of web travel in the cross machine direction. This prevents potential damage to the web and ensures that marks are placed only on the edge of the web material. The spray head assembly will automatically retract during web break conditions and advance upon detection of web material. Our spray marking technology can also be retracted or advanced under manual control for setup operations.


Model 1280 Guardian® Multicolor Edge Marking™ Technology

Model 1280 Guardian® Multicolor Edge Marking™ Technology

Model 1280 Guardian® Multicolor Edge Marking™ Technology


Prevent Product Contamination:
Each spray head assembly is equipped with an overspray collection system that completely encloses the atomizing spray systems preventing potential coloration of good web material. The collection system also prevents any atomized ink from entering the production environment.



Model 1280 Guardian® Multicolor Edge Marking™ Technology

Model 1280 Guardian® Multicolor Edge Marking™ Technology

Choose A Complete System:
The Model 1280 Guardian® Multicolor Edge Marking™ Technology includes a marker control station which contains the system's control electronics, power supplies and operational verification systems. Our Model 1280 Guardian® Multicolor Edge Marking™ Technology also includes a complete spray head assembly, main body assembly configured for the desired number of inks required, a test station, overspray collection system, and a water and air purification system. Ink is delivered through gravity controls to electronic and pneumatic control technologies for accurate, consistent, and reliable operation.

Call SDT:
Call us today to discuss your control applications and to learn more about the industry's most complete line of machine vision web inspection, hole detection, splice detection and control products.
