MODEL 1088 SENTINEL®



SPLICE DETECTOR™ TECHNOLOGY







Splice Detector Sensor Technologies by RKB on LinkedIn   Splice Detector Sensor Technologies by RKB on YouTube

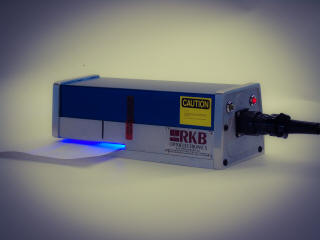

Model 1088 Sentinel® Splice Detector™ Technology

TECHNICAL SPECIFICATIONS

Defects Types Detected:

Splices

Tearouts

Web Breaks

Material Compatibility:

Papers

Plastics

Films

Other Non-metallic Materials

Ancillary equipment

Model 1099 AVT

Model 1122

Model 1280

Model 4000

Web Thickness:

0.175"

(4.45 mm) Max.

Gap Width:

0.20"

(5.08 mm)

Minimum Web Speed:

30 fpm

(15.24 m/min)

Maximum Web Speed:

No Limit

Electronic Alarm Output:

     Pulse Outputs:

     Voltage:

     Direction:

     Duration:

          3 Selectable



1

24VDC (± 3 V)

Positive Going



1 millisecond

10 milliseconds

100 milliseconds

Ambient Temperature:

40 to 160° F

(4 to 70° C)

Dimensions:

4.5" x 4.5" x 12.0"

(11.43 cm X 11.43 cm

 x 30.48 cm)

Power:

24VDC

Operating Level

17VDC minimum

30VDC maximum

Specifications are subject to change without notice.

Applicable To Any Web Fed Process:
The Model 1088 Sentinel® Splice Detector™ Technology consumes very little power while providing dependable and consistent splice (joint), tearout and web break detection on virtually any web process application. The Model 1088 Sentinel® Splice Detector™ Technology is designed to monitor from one to 16 or more webs of material and will detect any splice or joint that may exist within the web based process. It is applicable to manufacturing processes that require the culling out of splices or joints prior to shipment. As a control in subsequent conversion processes, it prevents damage to sensitive equipment. Examples of these include soft rolls, print heads, coater applicators and print blankets. Immediate detection, rejection and control of splices or joints creates savings of up to tens of thousands of dollars per annum.



Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology


Model 1088 Sentinel® Splice Detector™ TechnologyRespond to Varying Conditions:
Unaffected by printed surfaces, material color, grade changes and process speeds that challenge “photo eyes” and “ultrasonic devices”, the Model 1088 Sentinel® Splice Detector™ Technology guarantees 100% reliable detection every day; every shift. Based on the proven technology of the Model 1032 Classic® Splice Detector™, the Model 1088 Sentinel® Splice Detector™ is a self-calibrating system that is powered by 24VDC. It provides an opto-isolated, digital electronic output with a pulse width selectable for 1, 10 or 100 milliseconds. The re-designed alarm indicators are low power, low voltage LEDs that are clearly visible to machine attendants. The unit can be mounted anywhere along the web at any angle and either right side up or upside down.

Model 1088 Sentinel® Splice Detector™ TechnologyMinimize Operator Intervention:
The Model 1088 Sentinel® Splice Detector™ can be connected directly to PLC control devices or interfaced for activation of peripheral equipment such as audio/visual alarms, counters, sorters, coating head applicators, corona treaters, spray marking systems and reject gate controls. Modular in design, the new Sentinel requires 50% less energy to operate and can be equipped with Model 4000 AutoTrack® Technology eliminating operational intervention for deckle (web width) changes. This technology comes as a
complete package measuring 4.5" x 4.5" x 12" (11.43cm x 11.43cm x 30.48cm) and is Model 1088 Sentinel® Splice Detector™ Technologysupplied with the appropriate mounting holes based on geographical location of the installation. The Return on Investment (ROI) is most often as little as 8 hours of operation.

Guarantee Product Quality:
Our Model 1088 Sentinel® Splice Detector™ has been effectively applied to ensure delivered product quality on tens of thousands of materials, coated and non-coated such as papers, films, nonwovens, textiles, and tapes. Our splice detection technologies can be installed on many types of machinery including sheeters, on and off machine coaters, extrusion laminators, supercalenders, rotogravure and flexographic printing presses, holographic processes, textile and nonwoven machinery.




Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Mill Splice

Mill Slice

Mill Splice

Mill Splice

Mill Splice

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Model 1088 Sentinel® Splice Detector™ Technology Splice Fault

Mill Splice

Butt Splice

Overlap Splice

Tearout

Tearout


Demand Proven Performance:
Our splice detector technologies are designed for reliable, stable and consistent operation 24/7 in real world conditions. Designed to operate on low speed through high speed coating, laminating, printing, packaging and specialized converting processes our splice detectors are proven the leader in performance, reliability and price. With thousands of installations in over 130 countries worldwide, join with leading manufacturers who demand proven performance for their quality control initiatives.



Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Precision Alignment and Inspection

Machined Inspection Gap Prevents Material Damage

Manufactured from Aluminum

Can be Outfitted with our AutoTrack Control

Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Model 1088 Sentinel® Splice Detector™ Technology

Clear and Highly Visible

Alarm Indicators

Military Type Industrial Connections

State of the Art

Digital Processing

Designed as an All in One Plug and Play Device


Call SDT:
Call us today to discuss your web inspection application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
