MODEL 1032 CLASSIC®



SPLICE DETECTOR™ TECHNOLOGY







Splice Detector Sensor Technologies by RKB on LinkedIn   Splice Detector Sensor Technologies by RKB on YouTube



Model 1032 Classic® Splice Detector™ Technology

TECHNICAL SPECIFICATIONS

Defects Types Detected:

Splices

Tearouts

Web Breaks

Material Compatibility:

Papers

Plastics

Films

Other Non-metallic Materials

Ancillary equipment

Model 1042 AVT

Model 1122

Model 1280

Model 4000

Web Thickness:

0.175"

(4.45 mm) Max.

Gap Width:

0.20"

(5.08 mm)

Minimum Web Speed:

30 fpm

(9 m/min)

Maximum Web Speed:

No Limit

Relay Alarm Outputs:

Dry Contact Closures:

Amp Capacity at 110 VAC:

Amp Capacity at 220 VAC:

Alarm On Period:



2 (Non-inductive)

0.1 Amp

0.05 Amp

1 Second

Electronic Alarm Output:

     Pulse Outputs:

     Voltage:

     Direction:

     Duration:



1

15 V (± 3 V)

Positive Going

10 ms

Ambient Temperature:

40 to 160° F

(4 to 70° C)

Dimensions:

4.5" x 4.5" x 12.0"

(11.43 cm x 11.43 cm

x 30.48 cm)

Power:

110/220/240 VAC

50/60 Hz

Single Phase

Specifications are subject to change without notice.

Cut Costs and Downtime:

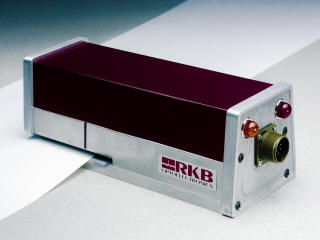

Cut downtime while preventing costly repairs to rolls, dies, and delicate process equipment used in web based material manufacturing and conversion processes with our patented state-of-the-art Model 1032 Classic® Splice Detector™ Technology. This unique splice detector monitors the total dielectric value at the point of inspection and therefore can detect all sudden changes in material thickness due to splices, tearouts, and web breaks no matter how many webs of material you have. Installed along any convenient point in your web, our Model 1032 Classic® Splice Detector™ will alert production personnel at the earliest possible stage of your process.



Model 1032 Classic® Splice Detector™ Technology



Guarantee Product Quality:
With thousands of installed systems in 130 countries worldwide, our Model 1032 Classic® Splice Detector™ technology ensures delivered product quality on any grade of non-metallic web material such as coated and non-coated papers, films, nonwovens, textiles, and tapes. Our Model 1032 Classic® Splice Detector™ can be installed on many types of machinery including sheeters, on and off machine coaters, extrusion laminators, supercalenders, rotogravure and flexographic processes, holographic processes, textile and nonwoven machinery.



Model 1032 Classic® Splice Detector™ TechnologyMinimize Operator Intervention:
Both a signal contact closure and a signal digital pulse output are integrated with each splice detector for control or activation of peripheral equipment such as audio/visual alarms, counters, sorters, coating head applicators, corona treaters, spray marking systems and reject gate controls. This technology comes as an all in one complete package and has universal mounting holes on the base plate. All our Model 1032 Classic® Splice Detector™ Technologies can be combined with our own Model 1280 Guardian® Multicolor Edge Marking™ Technology and our Model 1122 Abolisher® Reject Gate Control™ Technology for completely unattended operation of your production equipment.



Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Canada Installation

China Installation

Australian Installation

USA Installation

Italy Installation



Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Coater Installation

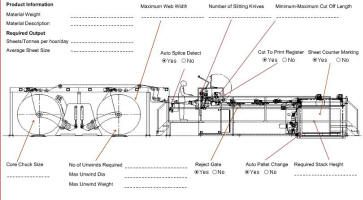

Sheeter Installation

Model 1032 Classic® Splice Detector™ Technology

Model 1032 Classic® Splice Detector™ Technology

Winder Installation

Slitter Installation

Respond to Varying Conditions:
Our Model 1032 Classic® Splice Detector™ sensors are auto-calibrating and can monitor single to multiple webs of material simultaneously eliminating the need for multiple sensors. No adjustments, settings or re-calibrations are required and our technology is completely unaffected by basis weight changes, coat weight changes, material color, splice tape type, color of splice tape and process manufacturing speeds. Our Model 1032 Classic® Splice Detector™ automatically "Adjust itself" for up-to-the-minute process conditions. Special splicing tapes, colors or identification tags are not required and the operation is unaffected by printed material. For applications where you want just audio and visual alarming, the Model 1032 Classic® Splice Detector™ can be integrated with our Model 1042 AVT (Audio/Visual Alarm Technology).



Demand Proven Performance:
The Model 1032 Classic® Splice Detector™ sensor is patented and combines innovative technology designed for reliable, stable and consistent operation 24 hours a day, 7 days a week. Designed to operate off of 120/220/240 VAC, 50/60Hz, consumption is as low as 5 watts. Low speed to high speed coating, laminating, printing, packaging and specialized converting processes, out Model 1032 Classic® Splice Detector™ is proven time and time again to be the leader in performance, reliability and price. With a return on investment of less than 8 hours (est.) our technology can be implemented for as little as 120.00 USD per year with zero maintenance requirements on average.



Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Mill Splice

Mill Slice

Mill Splice

Mill Splice

Mill Splice

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Model 1032 Classic® Splice Detector™ Technology Splicie Fault

Mill Splice

Butt Splice

Overlap Splice

Tearout

Tearout



Call SDT:
Call us today to discuss your web inspection application and to learn more about the industry's most diverse line of machine vision web inspection, hole detection, splice detection and control products.
